Have you noticed your circuit breakers tripping more often or lights dimming when you turn on certain appliances? These common problems often point to an issue with how electricity flows through your home’s wiring system. Load balancing in electrical systems means spreading out the power demand evenly across all the circuits in your home, so no single circuit gets overloaded while others remain underused.
When your electrical panel has too much power going through some circuits and not enough through others, it creates real risks for your home and your family. Your breakers might trip without warning. Your wires could overheat. Your electrical bills might be higher than they should be.
Learning how load balancing works can help you spot problems early and keep your home’s electrical system running safely. Here’s what this guide covers:
- Understanding electrical load balancing at home
- Identifying warning signs of imbalance
- Potential hazards of poor load distribution
- Strategies for achieving proper load balance
- When to seek help from a licensed electrician
Keep reading to learn what warning signs to watch for, what dangers come from poor load distribution, and what steps you can take to protect your Hillsboro home’s electrical system.
Understanding electrical load balancing at home
Your home’s electrical system divides power across multiple circuits to prevent any single pathway from becoming overloaded. When electricity flows unevenly, certain circuits handle too much demand while others remain underused, creating potential hazards and inefficiencies.
How electricity is distributed across circuits
Your electrical panel receives power from the utility company through two main legs, each carrying 120 volts. These legs work together to provide both 120-volt and 240-volt service throughout your home.
Standard outlets and light fixtures typically run on 120 volts, drawing from one leg of your service. Major appliances like electric dryers, ranges, and air conditioners use 240 volts by pulling from both legs simultaneously. Your breaker panel splits the incoming power into individual circuits, with each circuit protected by its own breaker.
Each circuit connects to either the first or second leg of your electrical service. A balanced panel alternates circuits between these two legs so that power consumption stays roughly equal on both sides. This distribution prevents one leg from carrying significantly more load than the other.
Why uneven loads can cause system strain
When one leg of your electrical service carries much more load than the other, several problems emerge. The overloaded leg experiences higher temperatures, which can damage wiring insulation and create fire risks.
Breakers on the heavily loaded side may trip frequently, even when individual circuits aren’t technically overloaded. Your neutral wire also carries more current when loads are imbalanced, potentially causing it to overheat since it lacks breaker protection.
Voltage drops occur on the overloaded leg, making lights dim and appliances run less efficiently. Motors in refrigerators and HVAC systems work harder and wear out faster when they don’t receive consistent voltage. Your utility costs increase because imbalanced systems waste energy through excess heat and inefficient operation.

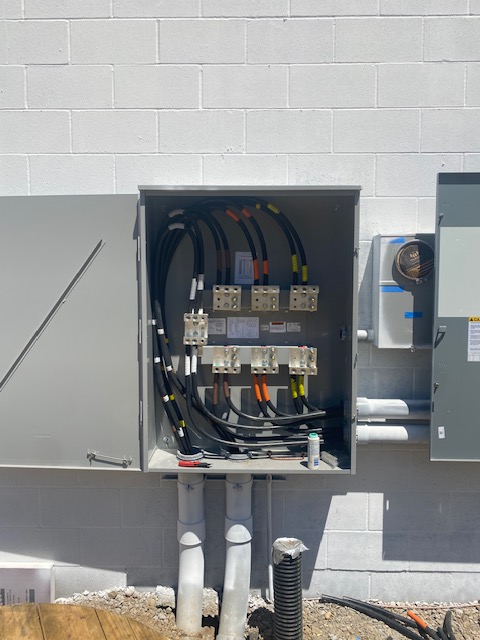

The role of your electrical panel in load management
Your electrical panel serves as the control center for distributing power throughout your home. Each breaker slot connects to alternating legs, allowing electricians to balance loads during installation.
The panel’s layout follows a specific pattern where odd-numbered slots typically connect to one leg and even-numbered slots to the other. When you add new circuits or upgrade appliances, an electrician should measure current draw on each leg to maintain balance. They use clamp meters to check amperage and verify that both legs carry similar loads.
Modern panels include spaces for 20 to 40 circuits, giving you flexibility to spread high-demand appliances across both legs. Proper labeling helps you identify which circuits serve which rooms and devices, making it easier to distribute usage throughout the day.
Identifying warning signs of imbalance
An unbalanced electrical system shows clear warning signs before major problems occur. Recognizing flickering lights, frequent breaker trips, and overheating components helps you address issues early and maintain electrical panel overload prevention.
Frequent breaker trips and power interruptions
Your circuit breaker protects your home by cutting power when it detects too much current flowing through a circuit. When breakers trip repeatedly, it signals that one or more circuits are handling more load than they should.
An unbalanced panel forces certain circuits to work harder than others. This creates excess current on those overloaded phases. The breaker does its job by shutting off power, but the constant interruptions mean your electrical distribution needs adjustment.
Common causes of frequent trips include:
- Multiple high-power appliances on the same circuit
- Uneven distribution of loads across panel phases
- Worn or damaged breaker components
- Short circuits or ground faults
If you reset a breaker and it trips again within minutes or hours, the problem requires immediate attention. Don’t ignore this warning sign or simply replace the breaker with a higher-rated one, as this creates serious fire hazards.
Flickering lights when appliances are in use
Lights that dim or flicker when you turn on major appliances indicate voltage drops from unbalanced loads. You might notice this when your air conditioner kicks on, the microwave runs, or the washing machine starts a cycle.
This happens because heavy appliances draw significant current from one phase of your electrical panel. If that phase already carries too much load compared to the others, voltage drops temporarily. Your lights respond to these voltage changes by dimming or flickering.
Occasional flickering during large motor startups is normal. But consistent dimming every time you use certain appliances means your loads need rebalancing. The voltage fluctuations also stress sensitive electronics and reduce their lifespan.
Overheating outlets or electrical panel components
Touch your electrical panel cover carefully. It should feel slightly warm at most. Hot spots or excessive heat indicate serious imbalance problems that need professional attention.
Overloaded circuits generate excess heat through electrical resistance. You might notice warm or discolored outlets, burning smells near the panel, or melted wire insulation. These are dangerous conditions that can lead to electrical fires.
Warning signs of overheating:
- Warm or hot outlet covers
- Discoloration around outlets or switches
- Burning smell from the electrical panel
- Melted or damaged wire insulation
- Scorched breaker switches
Check your outlets regularly by placing your hand near them. They should never feel hot to the touch. If you find overheating components, reduce the load on that circuit immediately and call a licensed electrician.
Potential hazards of poor load distribution
When electrical loads aren’t distributed evenly across your home’s circuits, several serious problems can develop. Unbalanced electrical systems create safety risks, damage expensive equipment, and waste energy through unnecessary power losses.
Increased chance of electrical fires and hazards
Poor load distribution forces some circuits to carry more current than they should handle. According to the U.S. Consumer Product Safety Commission, when electrical components are overloaded, the system overheats and wears out insulation, which leads to arcing and short circuits — the primary causes of home electrical wiring fires. More than 40,000 residential fires are attributed to home electrical wiring problems each year.
If you reset breakers without fixing the underlying imbalance, the wiring continues to overheat. Some older homes have undersized breakers that don’t trip when they should, making the fire risk even worse.
Hot spots in your electrical panel indicate dangerous imbalances. These areas show that certain phases or circuits handle too much load. The heat can damage bus bars, connections, and other panel components, increasing the chance of electrical arcing and fires.
Damage to appliances and sensitive electronics
Unbalanced loads create voltage fluctuations throughout your electrical system. Some outlets receive too much voltage while others don’t get enough. Your appliances and electronics need stable voltage to work correctly and last their expected lifespan.
Motors in refrigerators, air conditioners, and washing machines suffer the most from voltage imbalances. They draw more current to compensate for low voltage, causing them to overheat and fail early. High voltage is equally damaging and can burn out motor windings.
Computers, televisions, and other electronics with sensitive components can malfunction or sustain permanent damage from unstable power. You might notice flickering lights, devices shutting off unexpectedly, or equipment that stops working without warning.
Reduced efficiency of your home’s power system
Unbalanced electrical systems waste energy through increased resistance in your wiring. When one phase carries significantly more current than others, that phase loses more power as heat. You pay for this wasted electricity on your monthly bill without getting any useful work from it.
Your electrical system has to work harder overall when loads aren’t balanced. The neutral wire carries excess current, creating additional losses. This extra current also reduces the capacity available for other devices and appliances.
According to the U.S. Department of Energy, roughly one-third of all electricity consumption in homes is attributed to miscellaneous and electronic loads, including the wide range of small and large appliances that cycle on and off throughout the day. Spreading these loads properly across circuits is one of the most practical steps you can take to reduce unnecessary energy loss.
Strategies for achieving proper load balance
Balancing electrical loads requires careful planning of circuit distribution, maintaining updated equipment, and regular professional oversight. These strategies prevent overloaded circuits and keep your electrical system running safely.
Spreading high-energy appliances across circuits
You need to distribute your major appliances across different circuits instead of connecting them to the same one. High-energy devices like refrigerators, washing machines, dryers, air conditioners, and electric water heaters draw significant power. When you place too many of these on a single circuit, you create an imbalance that leads to tripped breakers and potential safety hazards.
Start by identifying which appliances use the most electricity in your home. Check their voltage and amperage requirements on the manufacturer labels. Then work with an electrician to assign each major appliance to its own dedicated circuit when possible.
In three-phase systems, you should spread loads evenly across all three phases. Calculate the total load for each phase and adjust connections to keep the power draw roughly equal. This prevents one phase from becoming overloaded while others remain underutilized.
For residential electrical load calculation, add up the volt-amperes (VA) or kilovolt-amperes (kVA) of your devices rather than just their wattage. This gives you a more accurate picture of the actual power demand on each circuit.
Upgrading outdated electrical panels when needed
Your electrical panel might need replacement if it cannot handle your current power demands. Older panels were designed for lower electrical loads than modern homes require. Signs you need an upgrade include frequent circuit breaker trips, dimming lights when appliances turn on, or a panel that feels warm to the touch.
Most older homes have 100-amp or 150-amp panels. Today’s homes typically need 200-amp service to support multiple high-energy appliances, HVAC systems, and charging stations. An electrician can assess whether your panel capacity matches your household needs.
Panel upgrades also provide an opportunity to implement better panel load balancing. New panels offer more circuit slots, allowing you to distribute loads more effectively. Modern panels include better protection features and make it easier to assign dedicated circuits to major appliances.
Scheduling professional electrical inspections
Professional electricians can measure actual current draw on each circuit using specialized tools. They identify imbalances that aren’t obvious through visual inspection alone. You should schedule a home electrical safety inspection every three to five years, or sooner if you add major appliances or notice electrical problems.
During an inspection, the electrician checks each circuit’s load, tests connections, and verifies proper grounding. They use load meters to measure the amperage on each phase in three-phase systems. This data shows exactly where imbalances exist.
The inspector also examines your electrical panel for signs of wear, corrosion, or damage. They can spot loose connections, outdated components, or safety code violations. Based on their findings, they provide specific recommendations for rebalancing your system or making necessary repairs.
When to seek help from a licensed electrician
Some electrical tasks are safe to handle yourself, but load balancing often requires professional expertise. Licensed electricians have the training to evaluate your system properly and make changes that protect your home.
Persistent electrical issues despite basic adjustments
You might try moving devices to different outlets or unplugging high-power items to balance your electrical load. When breakers keep tripping or lights continue flickering after these simple fixes, you need professional help.
A licensed electrician can check if your electrical panel has the right capacity for your home’s needs. They use special tools to measure the load on each circuit and find problems you can’t see. This includes checking for faulty wiring, damaged breakers, or circuits that were never set up correctly.
Warning signs that require immediate professional attention:
- Burning smells near outlets or the electrical panel
- Sparks when you plug in devices
- Breakers that trip right after you reset them
- Warm or discolored outlet covers
- Buzzing sounds from switches or outlets
Don’t try to fix these problems yourself. Shut off power to affected areas and call an electrician right away. These issues can lead to electrical fires or serious injuries if ignored.
Planning home upgrades or adding new appliances
Major appliances like electric water heaters, air conditioners, or EV chargers need dedicated circuits. An electrician will calculate if your current panel can handle the extra load or if you need an upgrade.
They can also set up your electrical system to prevent future problems. This includes distributing loads evenly across both legs of your 240-volt service and making sure no single circuit gets overloaded.
Smart home systems and backup generators also require professional electrical load balancing service. These installations affect your entire electrical system and must meet specific technical requirements. Adding a subpanel is often the most practical solution when a primary panel is running out of capacity for new dedicated circuits.
Ensuring code compliance and long-term safety
Electrical codes exist to keep your home safe and protect your family. Professional electricians know current local codes and building requirements that govern electrical work.
Work done without proper permits or inspections can cause serious problems. Your homeowner’s insurance might not cover damage from unpermitted electrical work. You could also face issues when selling your home if inspectors find code violations.
Licensed electricians carry insurance that protects you if something goes wrong during the work. They also provide documentation of the work performed, which helps with code compliance inspections and proves your system meets safety standards.
Conclusion
Load balancing keeps your electrical system running smoothly and safely. When you distribute power evenly across all phases, you prevent circuits from getting overloaded and reduce the risk of equipment failure.
Your electrical panels work better when loads are balanced properly. This means less energy waste, lower utility bills, and fewer unexpected breakdowns. You also extend the life of your electrical components because they don’t have to work as hard.
You need to check your load balance regularly, especially if you add new equipment or appliances. An unbalanced system puts extra stress on your electrical infrastructure and can lead to serious problems down the road.
Professional electricians use specific techniques to measure and adjust loads across phases. They look at current draw on each phase and redistribute circuits as needed. This process is important for homes, businesses, and industrial facilities.
Your investment in proper load balancing pays off through improved performance and reduced operating costs. The practice is not just technical maintenance — it’s a practical way to protect your property and keep your electrical system healthy for years to come.
Contact Peak Electric Group to schedule a professional load balancing assessment and keep your Hillsboro home’s electrical system running safely.
